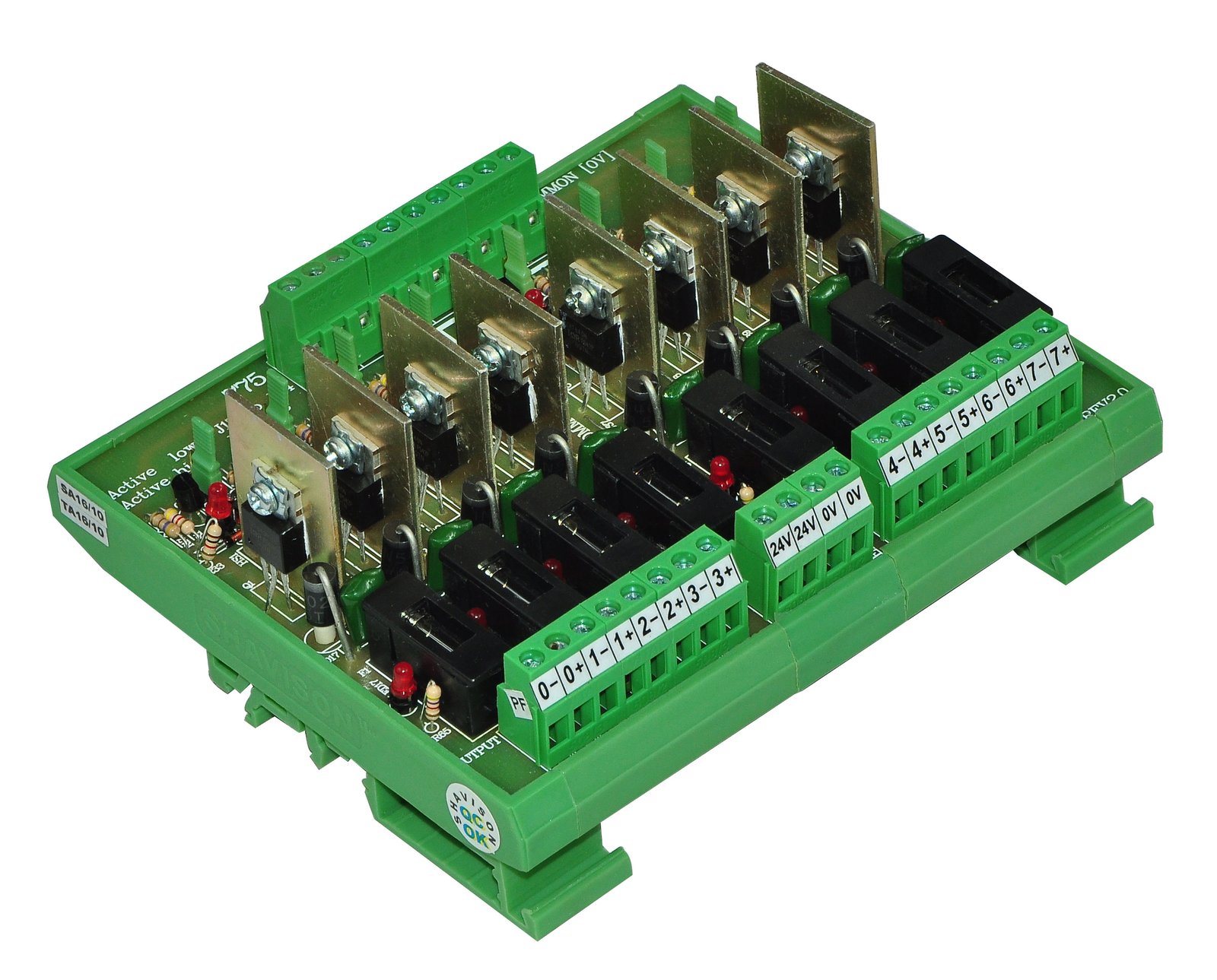

SSR Non-Isolated, DC-DC, 8 channel, Input :24V, Output : 24VDC : 2.5A
Life 100 times more than electro mech. Relay
Input current < 15mA
Active High/Low input selection with jumpers(site selectable)
Output : 24VDC, 2.5A
Operating Freq. upto 10KHz
Fuse at output
| Isolation | Non-Isolated |
| Input / Output Type | DC-DC |
| No. Of Channels | 8 |
| Input Voltage | 24 V |
| Output Rating | 24VDC : 2.5A |
| Features | Electrical life is 100 times that of electromechanical relay Active High / Low input selection through jumpers Low input Current Negligible switching delay Fuse at output for over current protection |
| Operating Ambient | 0~55°C, 85% RH |
| Storage Ambient | -20°C to 85°C |
| Mounting | 35 mm DIN rail |
| Product Code | Description | Certification | Price Factor |
|---|
CAD Models
