Price: $22.00
Review your selected items and send an enquiry. We'll get back to you shortly.

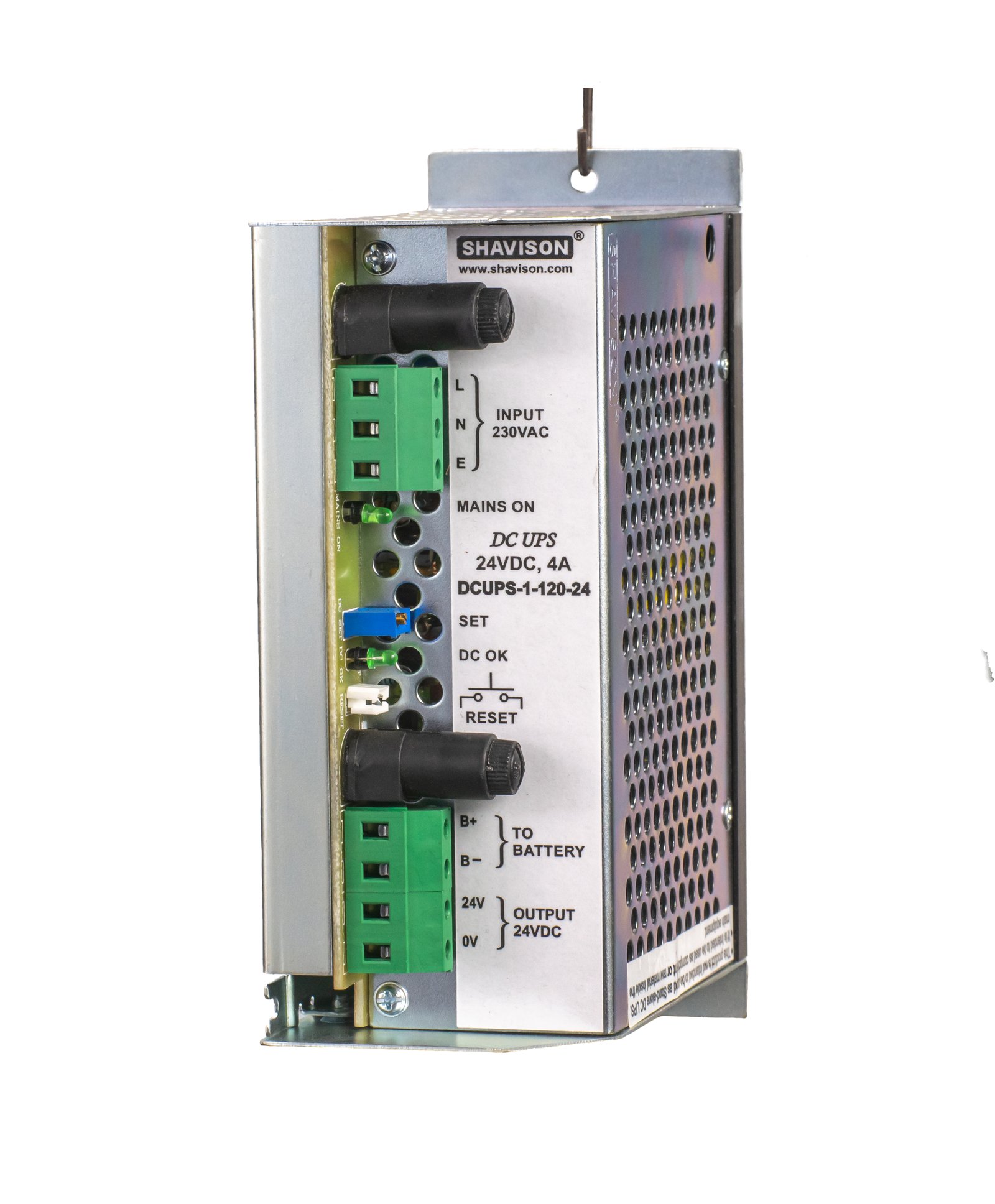

DC-UPS, I/P: 230VAC, 24V, 4A, 120W
Single Phase Input
Built In Transient protector & EMI filter
Protection against short circuit, overload, over voltage & Battery low
Battery reverse polarity protection by fuse
Low ripple & noise
Cooling by free air convection
Power OK indication, terminations, output set control & rating details on front
100% full load burn in tested
Low cost
High reliability
Compact
| Nominal Input | 230 VAC |
| Output Voltage | 24 V |
| Output Current | 4 A |
| Watt | 120 W |
| Isolation | Input – Output : 1.5KVAC, 1 minute Input – Earth : 1.5KVAC, 1 minute Output – Earth : 500VAC, 1 minute |
| Efficiency | 70 ~ 75% |
| Operating ambient | 0 ~ 50°C,95% RH |
| Storage ambient | - 20°C to 85°C |
| Mounting | Screw / Wall Mounting |
| Product Code | Description | Certification | Price Factor |
|---|
