SMPS For InstrumentsSMPS | HSN : 85044090 |
Input | Output (DC) | Order Code | Select Products for Enquire Now |
||
|---|---|---|---|---|---|---|
| Voltage | Current | |||||
30WDownload Datasheet |
Universal Input : 100 to 264VAC 110 to 360VDC |
5V | 6A | IPS18-30-05 | Enquire Now | |
| 10V | 3A | IPS18-30-10 | ||||
| 12V | 2.5A | IPS18-30-12 | ||||
| 15V | 2A | IPS18-30-15 | ||||
| 24V | 1.25A | IPS18-30-24 | ||||
| 28V | 1.0A | IPS18-30-28 | ||||
| 36V | 0.8A | IPS18-30-36 | ||||

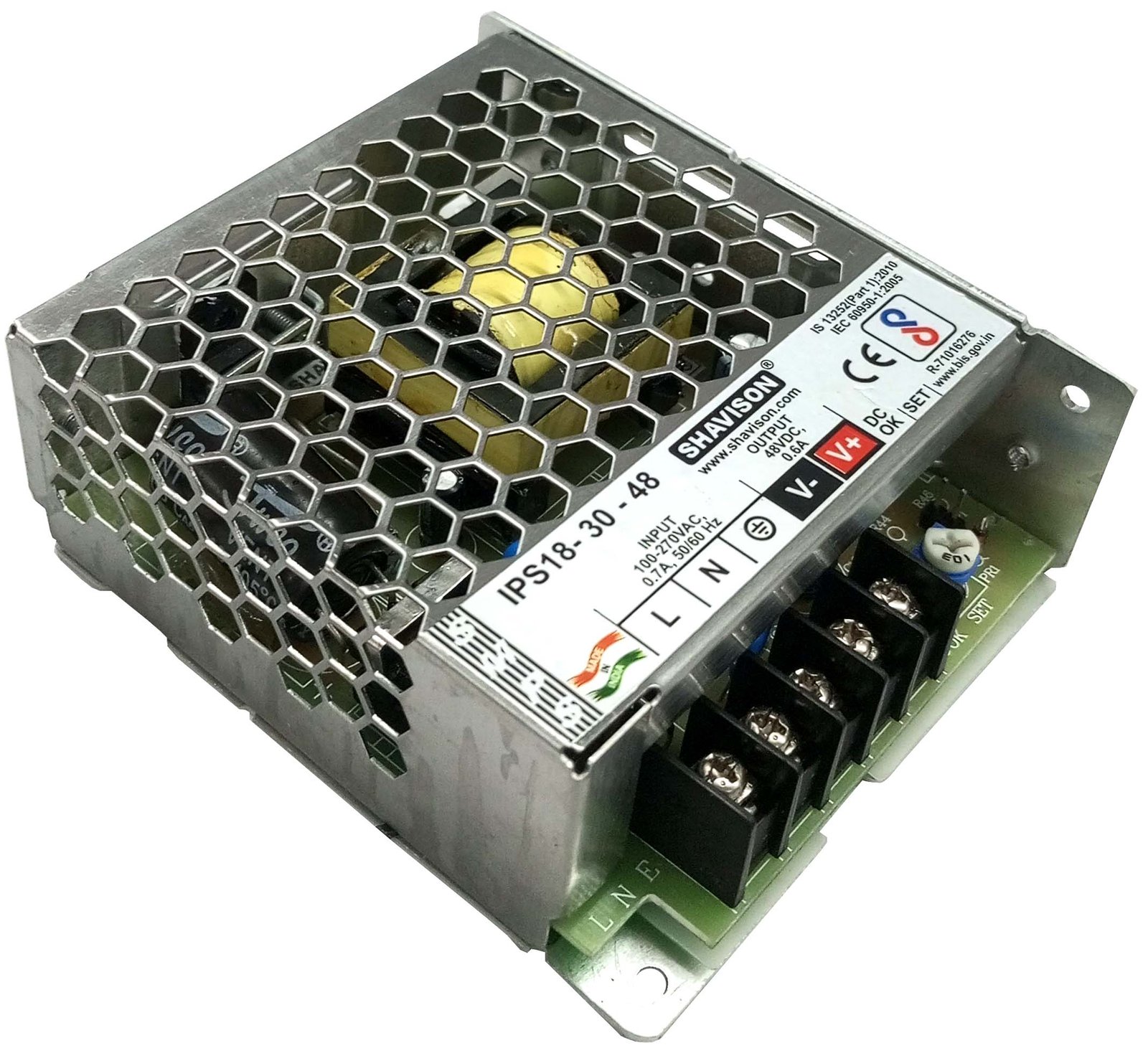

| 48V | 0.5A | IPS18-30-48 | ||||
60WDownload Datasheet |
Nominal : 230VAC/DC Range : 185 to 264VAC 200 to 360VDC |
12V | 5A | IPS11-60-12 | ||
| 24V | 2.5A | IPS11-60-24 | ||||
| Universal Input : 100 to 264VAC 110 to 360VDC |
5V | 10A | IPS18-60-05 | |||
| 12V | 5A | IPS18-60-12 | ||||
| 15V | 4A | IPS18-60-15 | ||||

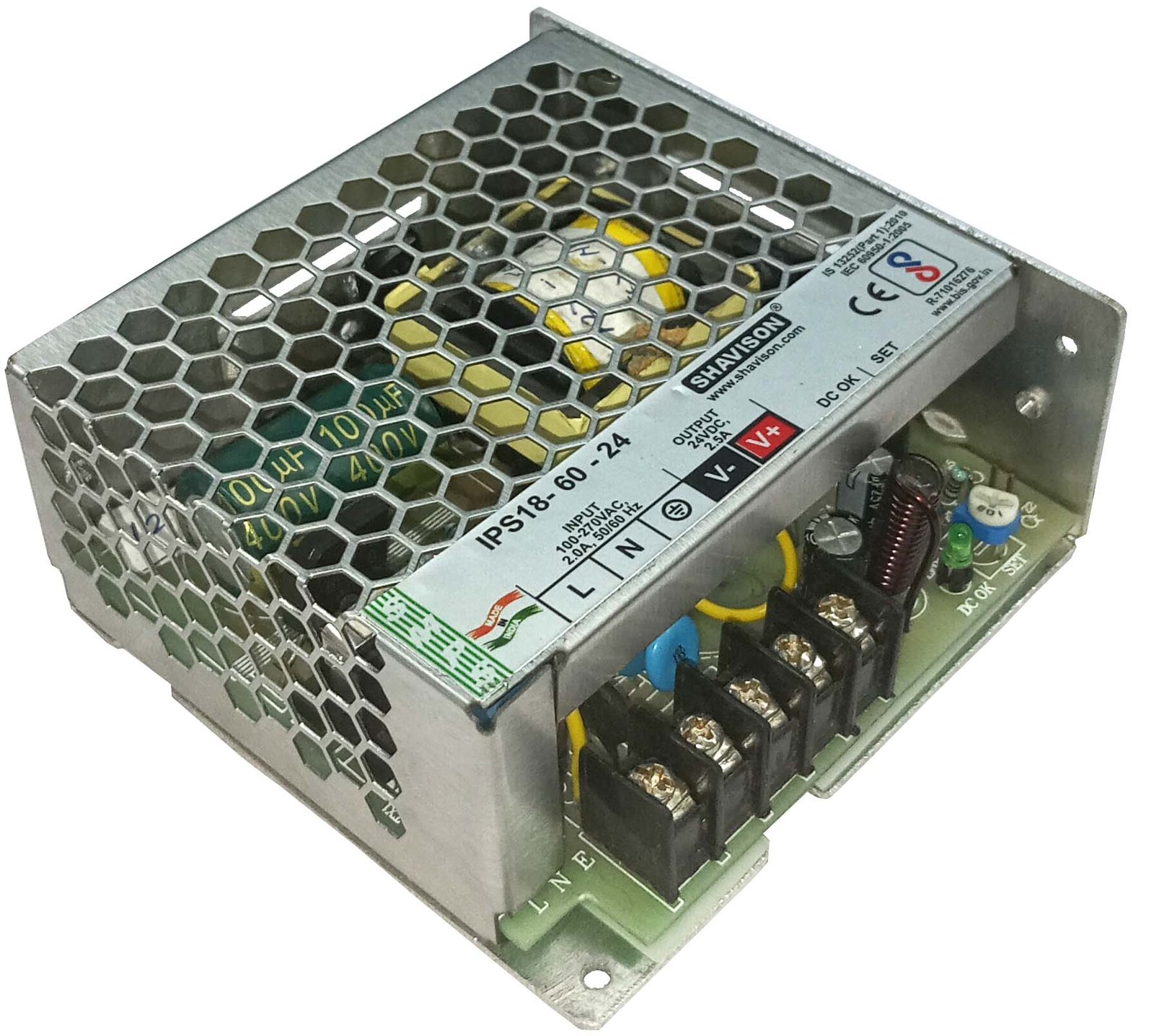

| 24V | 2.5A | IPS18-60-24 | ||||
| 36V | 1.6A | IPS18-60-36 | ||||
| 48V | 1.25A | IPS18-60-48 | ||||
120WDownload Datasheet |
Nominal : 230VAC/DC Range : 185 to 264VAC 200 to 360VDC |
12V | 10A | IPS11-120-12 | ||
| 24V | 5A | IPS11-120-24 | ||||
| Universal Input : 100 to 264VAC 110 to 360VDC |
5V | 15A | IPS18-120-05 | |||
| 12V | 10A | IPS18-120-12 | ||||
| 15V | 8A | IPS18-120-15 | ||||

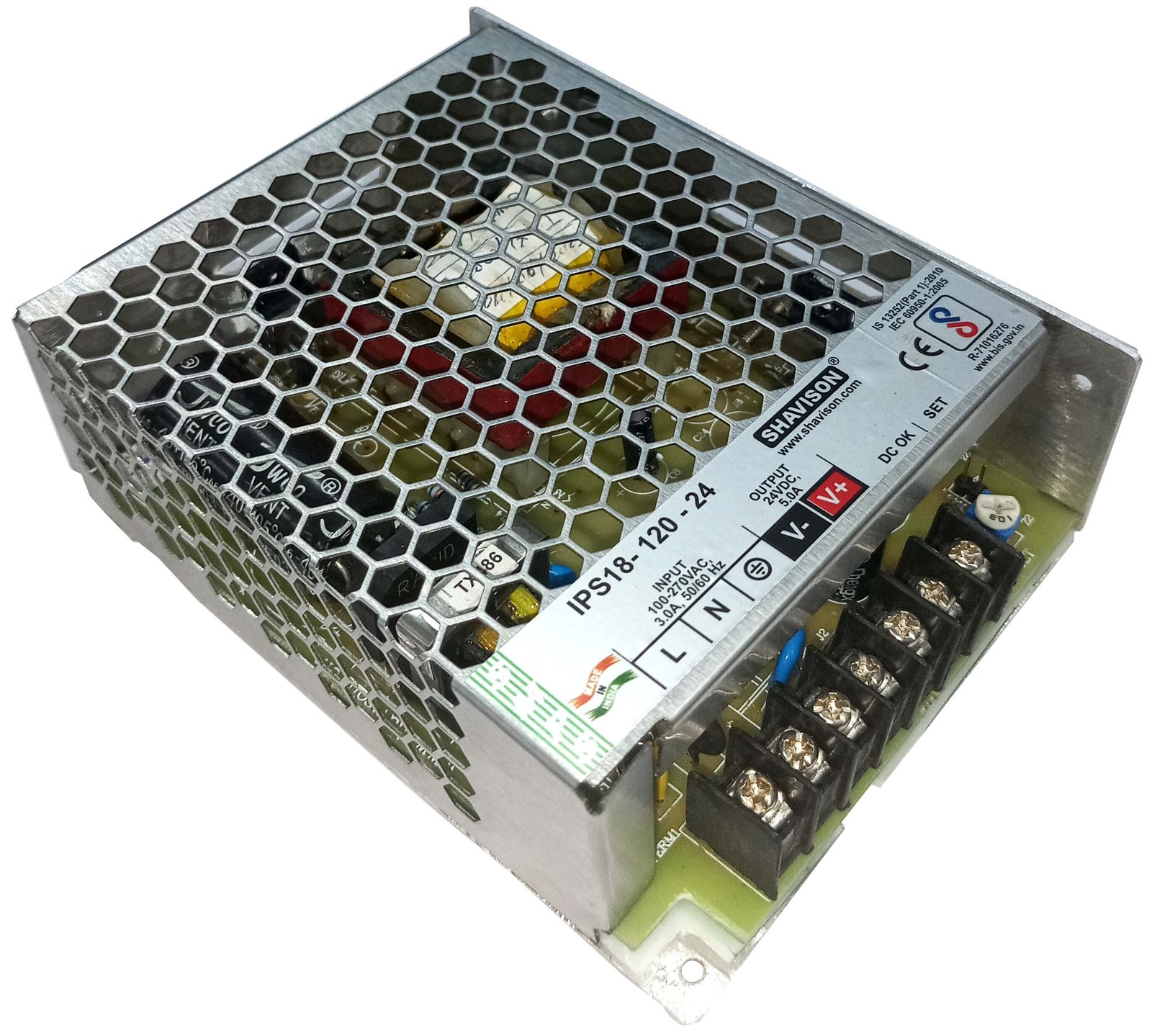

| 24V | 5A | IPS18-120-24 | ||||
| 36V | 3.3A | IPS18-120-36 | ||||
| 48V | 2.5A | IPS18-120-48 | ||||
